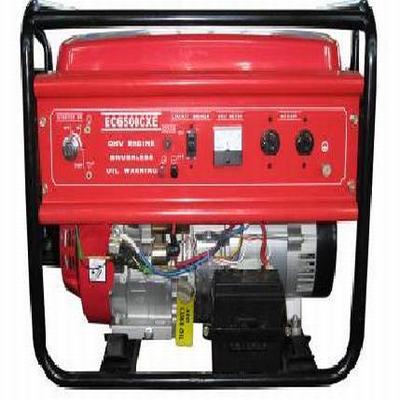

EC6500CXE
Model Code型號 EC6500CXE
Rated Frequency（Hz）額定頻率 50Hz
Rated Output Power(kVA) 額定輸出功率 5.0
The Max. Output Power(kVA)最大輸出功率 5.5
AC Rated Voltage (V) 額定電壓 220
AC Rated Current (A) 額定電流 22.7
Phase相數 Single-phase單相
DC Output (Optional) 直流輸出（選配） 12V / 8.3A
Power Factor (cosφ) 功率因數 1.0
Engine Model Code發動機型號 RY380FE
Engine type發動機類型 Single-cylinder, 4-stroke, OHV
Air-cooled Gasoline Engine單缸，四沖程，氣門頂置風冷式汽油機
Rated Output Power(kW/HP) 額定輸出功率 7.0/9.5
Rated Speed (RPM) 額定轉速 3000 3600
Displacement (cc)排氣量 389
Compression Ratio壓縮率 8:1
Starting Method啟動方式 Electric Starter電啟動
Fuel燃油 Automobile Unleaded Gasoline車用無鉛汽油
Fuel tank capacity (L) 油箱容積 25.8
Lubrication Oil 潤滑油型號 SAE15W40 (above CC grade)（CC級以上）
Rotation Direction (View From Wheel) 旋轉方向（以輪子為觀察點） Clockwise順時針
Noise Level [dB(A)/7m] 噪音/7米處
70~75
Low Oil Pressure Alarm System低油壓警示系統 With有
Structure Type結構類型 Open-frame開架式
Dimensions (L×W×H) (mm) 外形尺寸 680×510×540
Packing size (L×W×H) (mm) 包裝尺寸 700×530×570
Net weight (kg) 凈重 82
In 20" Container (sets) 裝箱數 20尺柜 140
Rated Frequency（Hz）額定頻率 50Hz
Rated Output Power(kVA) 額定輸出功率 5.0
The Max. Output Power(kVA)最大輸出功率 5.5
AC Rated Voltage (V) 額定電壓 220
AC Rated Current (A) 額定電流 22.7
Phase相數 Single-phase單相
DC Output (Optional) 直流輸出（選配） 12V / 8.3A
Power Factor (cosφ) 功率因數 1.0
Engine Model Code發動機型號 RY380FE
Engine type發動機類型 Single-cylinder, 4-stroke, OHV
Air-cooled Gasoline Engine單缸，四沖程，氣門頂置風冷式汽油機
Rated Output Power(kW/HP) 額定輸出功率 7.0/9.5
Rated Speed (RPM) 額定轉速 3000 3600
Displacement (cc)排氣量 389
Compression Ratio壓縮率 8:1
Starting Method啟動方式 Electric Starter電啟動
Fuel燃油 Automobile Unleaded Gasoline車用無鉛汽油
Fuel tank capacity (L) 油箱容積 25.8
Lubrication Oil 潤滑油型號 SAE15W40 (above CC grade)（CC級以上）
Rotation Direction (View From Wheel) 旋轉方向（以輪子為觀察點） Clockwise順時針
Noise Level [dB(A)/7m] 噪音/7米處
70~75
Low Oil Pressure Alarm System低油壓警示系統 With有
Structure Type結構類型 Open-frame開架式
Dimensions (L×W×H) (mm) 外形尺寸 680×510×540
Packing size (L×W×H) (mm) 包裝尺寸 700×530×570
Net weight (kg) 凈重 82
In 20" Container (sets) 裝箱數 20尺柜 140
